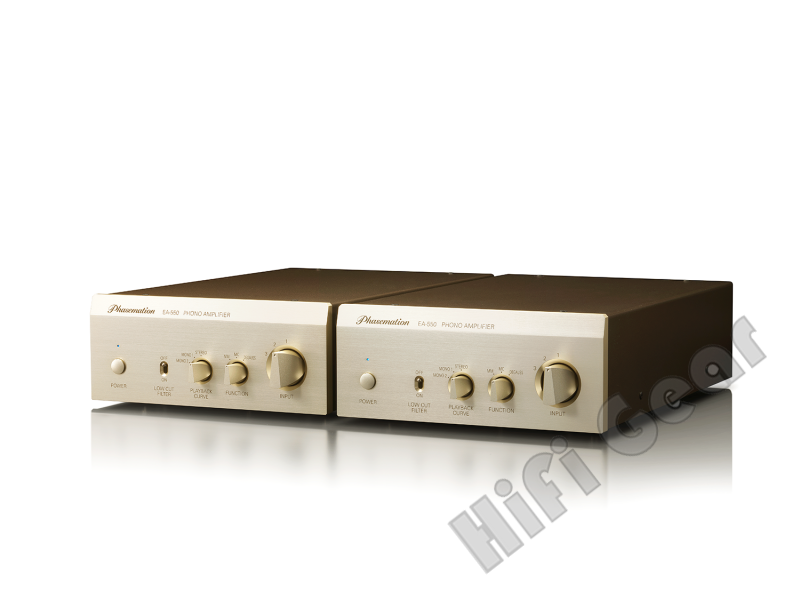

Phasemation EA-550 MM/MC Phono Amplifier
-
Part Number:EA-550
-
Category:Phono Amplifier
-
Lead Time:Pls Call (free local delivery)
-
Price:HK$50,750.00/pc
-
Qty:
-
Rating:
Having in mind that “analogs too have a lot more to go,” we expanded the product line-up of EA-1000, EA-500, EA-350, EA-300, EA-200 and phono amplifiers due to a non-feedback for lovers of analog discs.
This time, any small inexactness were eliminated as a compilation of semiconductor phono amplifiers, and the built-in MC transformer was newly designed with a special split winding structure that uses a high pure copper wire PC-TripleC as the secondary winding material.
The EA-550 will be released to experience a new level of sound along with a refinement on the circuit.
Transistor phono amplifier design
Independent cabinet design for left and right channels Independent R-Core transformer for left and right channels No negative feedback circuit design
| Form | V-I/I-V conversion type all-stage symmetric non-feedback equalizing amplifier | |
| Input Type (Cartridge) | MM | MC |
| Input Sensitivity | 2.5 mV | 0.13 mV |
| Suitable Cartridge Output Impedance | 47 kΩ or less | 1.5 to 40Ω |
| Gain | 38 dB | 64 dB |
| Input Equivalent S/N Ratio | –120dBV | –140dBV |
| Rated Output Voltage | 200 mV (1kHz) | |
| Rear Curve Tolerance | ± 0.5 dB (20Hz to 20kHz) | |
| Power Consumption | 10W (100VAC 50 - 60Hz) for each Ch | |
| Dimensions | 211 (W) × 93 (H) ×360 (D) | |
| Weight | 5.5kg for each Ch |
|
