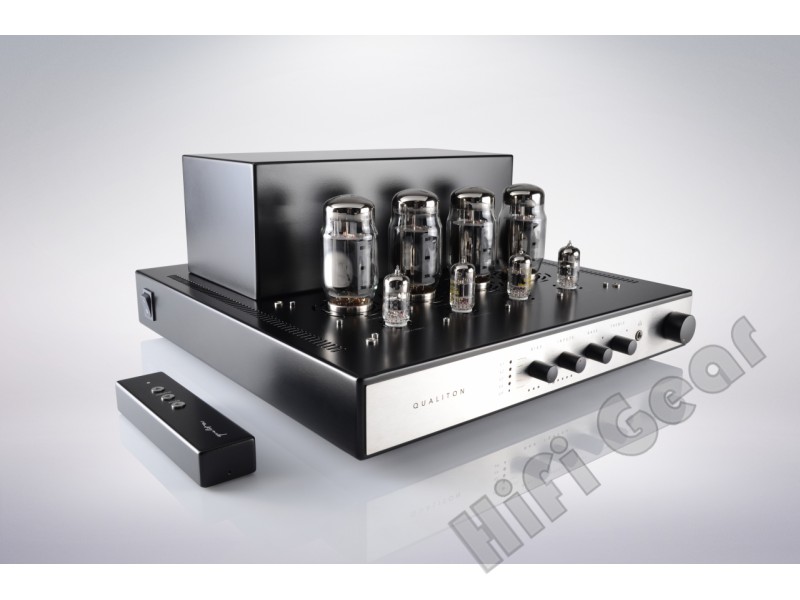

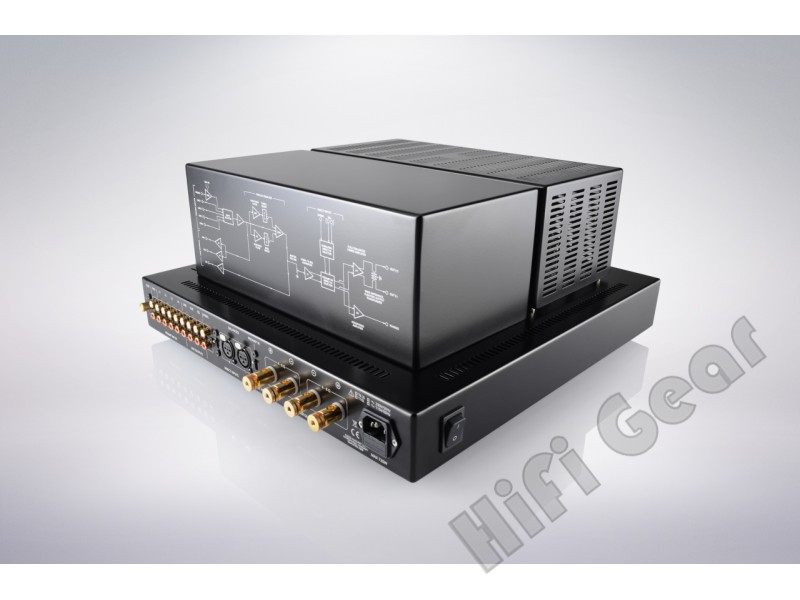

Audio Hungary X200 Integarted Tube Amplifier

Audio Hungary X200 Integarted Tube Amplifier
  • Audio Hungary X200 Integarted Tube Amplifier
  • Part Number
    :
    X200
  • Category
    :
    Used / Demo Units
  • Lead Time
    :
    Demo Unit - Special Price
  • Price
    :
    HK$18,800.00/pc

  • Qty
    :
  • Rating
    :
    0 reviews

We are excited to announce that the latest member of our Qualiton Classic Series, the Qualiton X200 Integrated Stereo Power Amplifier is finally here and ready to production.
The Qualiton X200 is designed to serve analog enthusiasts who need a combination of a high-performance vacuum tube power amplifier and a versatile preamplifier, along with sophisticated technical details, built into a single chassis. In this way, perfect matching is achieved - both sonically and technically - between the main signal processing sections.

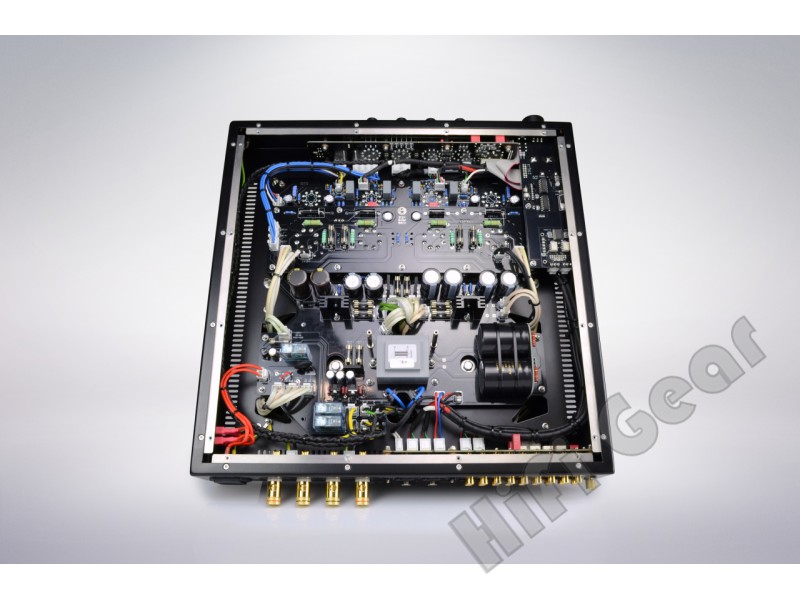

The most important aspect of the design process was to meet the widest possible range of user needs in a compact footprint. All internal circuits were designed from scratch, avoiding the usual clichés throughout, to create a complete all-rounder. The X200 can be used as a separate preamplifier, as an integrated power amplifier, as a stand-alone power amplifier with direct inputs, or as a headphone amplifier, but other configurations are possible.

The low noise analog front-end built around a wideband and transparent circuit and features a phono preamp with enhanced precision too. Line level and subwoofer outputs are absolute necessary in this category, these ports are included on the back. We've added a real specialty too: a built-in, studio grade Parallel Equalizer. This kind of tools is primarily used as a master channel effect in recording studios, to bring fresh air into the mix, as a finishing touch. We've found that this effect can also be a huge help at home as well, as it can breath new life into certain, not so vivid records.

General
Number of input ports / channel   1 unbalanced Phono IN
    4 unbalanced Line IN
    1 unbalanced Direct IN
    1 balanced Direct IN
  Number of output ports / channel   1 unbalanced Line OUT
    1 unbalanced Sub OUT
    1 unbalanced EQ OUT
    1 unbalanced Phones OUT
    1 balanced Power OUT
  Tubes required   4 x KT120 (KT150 or KT170 optionally)
    2 x 6922
    2 x 12AX7
  Weight   23 kg
  Dimensions   43 x 47.5 x 20 cm
  Power requirement   Idle: 200 W, Maximum: 720 W
–––––––––––––––––––––––––––––––––––––––––––––
Power amplifier
Rated output power   2 x 100 W
  Input impedance, Direct balanced IN   20 kOhm
  Input impedance, Direct unbalanced IN   10 kOhm
  Input sensitivity, Direct balanced IN   460 mV, to rated output
  Input sensitivity, Preamp IN   460 mV, to rated output
  Input sensitivity, Phono IN   2.25 mV, to rated output
  Gain   +35.5 dB (RL = 8 Ohm)
  Frequency response   27 Hz to 70 kHz (-3 dB, rated output)
  Total Harmonic Distortion   < 0.5% (f = 1 kHz, rated output)
  Signal-to-noise ratio   > 100 dB (RL = 8 Ohm, rated output)
  Load impedance   4 to 8 Ohm
––––––––––––––––––––––––––––––––––––––––––––––––––––
Preamplifier
Input impedance - Phono   47 kOhm || 120 pF
  Input impedance - Line   25 kOhm || 10 pF
  Max. input signal - Phono   40 mV (f = 1 kHz)
  Max. input signal - Line   8 V
  Gain - Phono   +46 dB (f = 1 kHz)
  Gain - Line   0 dB
  Max. deviation from RIAA curve - Phono   +/- 0.5 dB
  Frequency response - Line   4 Hz to 1 MHz (-3 dB)
  Total Harmonic Distortion - Phono   < 0.03% (f = 10 kHz)
  Total Harmonic Distortion - Line   < 0.001% (f = 20 Hz to 20 kHz)
  Total Harmonic Distortion - EQ   < 0.002% (f = 20 Hz to 20 kHz)
  Signal-to-noise ratio - Phono   > 60 dB (1 V, without A-filter)
  Signal-to-noise ratio - Line   > 90 dB (1 V, without A-filter)
  Signal-to-noise ratio - EQ   > 90 dB (1 V, without A-filter)
  Bass boost in setting I - EQ   + 5.6 dB
  Bass boost in setting II - EQ   + 7.6 dB
  Treble boost in setting I - EQ   + 6 dB
  Treble boost in setting II - EQ   + 8 dB
––––––––––––––––––––––––––––––––––––––––––––––––––––––
Phones
  Rated output power   2 x 0.3 W (RL = 32 Ohm)
  Gain   -6 dB (RL = 32 Ohm)
  Frequency response   4 Hz to 1 MHz (-3 dB)
  Total Harmonic Distortion   < 0.008% (RL = 32 Ohm, 0.125 W)
  Signal-to-noise ratio   > 95 dB (RL = 32 Ohm, rated output))
–––––––––––––––––––––––––––––––––––––––––––––––––––––––
